hybrid-wheel drive power wheelchairs
NO COMPROMISE!
GET STABILITY, SPEED AND
MANEUVERABILITY
WITH
STATE-OF-THE-ART
HYBRID-WHEEL DRIVE
TECHNOLOGY.

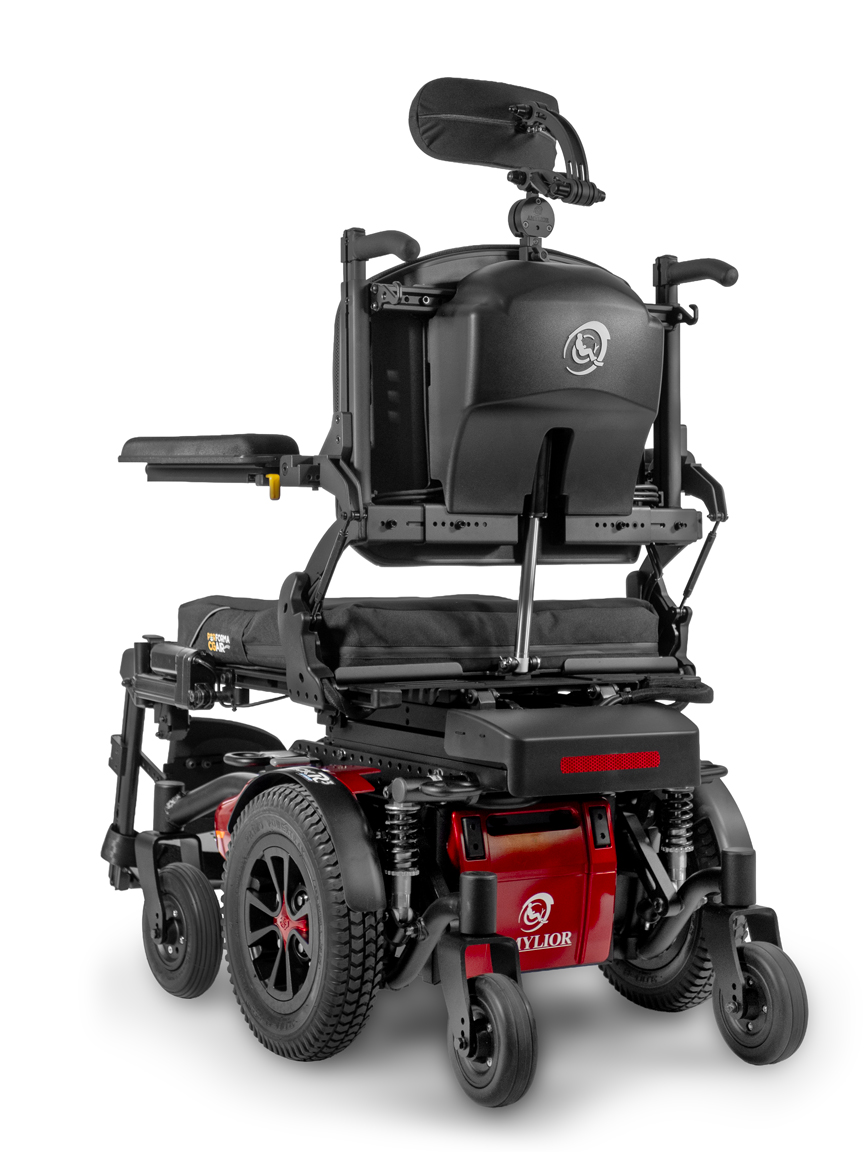

The Alltrack R3 Hybrid Power Wheelchair & R3-HD are the one and only true Hybrid Power Wheelchair, melding the best attributes of rear-wheel drive and mid-wheel drive in one capable package. The R3 Hybrid Power Wheelchair is ideal for users that demand the outdoor performance, speed, and comfort of a traditional rear-wheel drive but need the maneuverability provided by mid-wheel drive. By combining unique geometry with patented dual-action suspension, the R3 Hybrid Power Wheelchair offers a compact, maneuverable base without sacrificing performance!
HIGHLIGHTS
- Patented Dual-Action Suspension: Fully independent 6-wheel interactive suspension with vertical shock absorption
- Stability, speed, comfort, and outdoor performance of rear-wheel drive
- Compact footprint and turning radius of 21.75” (550 mm) provides maneuverability similar to a mid-wheel drive
- Available with center mount articulating foot platform or independent elevating legrests
- Multiple frame, drive wheel and caster options
- Available in standard (300 lb weight capacity) and HD (400 lb weight capacity) models
COLORS
Alltrack R3 - Onyx Black Matte
Alltrack R3 - Indigo Blue
Alltrack R3 - Cobalt Blue
Alltrack R3 - Sublime
Alltrack R3 - Habanero Metallic
Alltrack R3 - Bubble Gum Metallic
Alltrack R3 - Candy Red
Alltrack R3 - Cabernet
TECHNICAL SPECIFICATIONS
| Configuration | Hybrid-wheel drive – Standard (Alltack R3 Hybrid) or Heavy-duty (Alltrack R3-HD Hybrid) |
| Suspension system | Patented Dual-Action Suspension: Fully independent 6-wheel interactive suspension with vertical shock absorption |
| Ground clearance1 | 3.5” (90 mm) with a 14” (355 mm) drive wheel, 2.875” (75 mm) with a 12.5” (320 mm) drive wheel |
| Base width2 | 23.375” (595 mm) with GP 22 batteries or 25.375” (645 mm) with GP 24 batteries |
| Base length2 | 35.875” (910 mm) |
| Base turning radius | 21.75” (550 mm) |
| Weight capacity | 0-300 lb (0-136 kg) R3 Hybrid 0-400 lb (136-180 kg) R3-HD Hybrid |
| 4-Pole motor options | 6.5 mph (10 km/h) Std (R3/R3-HD Hybrid) 8.5 mph (13.7 km/h) option (R3 Hybrid) max. user weight 250 lb |
| Transit option (Unoccupied) | 4-point tie-down brackets (Standard) |
| Transport option WC-19 (Occupied) | Optional with select seat sizes and seating configurations |
| Battery types | Two 12 V, deep cycle Gel cell Group 22NF (50 Ah) or Group 24 (70 Ah) |
| Battery charger | 8 A, off board |
| Electronics | PG Drives VR2 (non-expandable 90 A) or R-net (expandable 90 A or 120 A) |
| Assistive driving package | Available with Smart-Track technology |
| Specialty controls | Compatible with Switch-It, Stealth, ASL or MO-VIS as well as other current systems |
| Seat width range | Adjustable from 15” to 26” (380 mm to 660 mm) wide |
| Power seating option³ | Power Tilt, Power Recline with Mechanical Shear Reduction (MSR), Combination Power Tilt and Recline with MSR, Center Mount Elevating & Articulating Foot Platform, Independent Power Elevating & Articulating Legrests, Alta Power Seat Elevation |
| Seat to floor height range (With power tilt or Alta Power Seat Elevation)* | 15.75” or 19” (400 mm or 485 mm) |
| Seat to floor height range (With combo power tilt and seat elevate)* | 17.75” to 18.5” (450 mm to 470 mm) |
| Component weights4 | For a compact base width 23.375”: 127 lb (57 kg); For a standard base width 25.375”: 132 lb (59 kg) Batteries: Group 22NF: 2 x 36.6 lb (16.6 kg); Group 24: 2 x 54 lb (24.5 kg) |
| Drive wheel diameter | 12.5” or 14” (320 mm and 355 mm) |
| Caster wheel diameter | 8” or 9” (205 mm or 230 mm) |
* Add 1.5” (40 mm) when using the HD Alta Power Seat Elevation.
1. Subject to variances depending on configuration and manufacturing tolerances.
2. Dimensions listed are for power base only.
3. Custom specialized power seating options available.
4. Contact Customer Service for additional weight information.
